603LWT

PRODUCT DESCRIPTION

Hinged door suitable for negative temperatures up to -18°C, with CSI or Equa handle certified EN179:2008 and heating cable on the blade.

For negative temperatures up to -18°C
Blade thickness 92mm
Polyurethane density: 40 Kg/m³
Available in one blade or two blades versions narrow.

APPLICATIONS

Suitable for cold rooms used for the processing and the preservation of foods at a temperature from 0 and up to –18°C.
The 603 LWT doors are mainly used in: plants for the meat processing, cheese factories, deposits for the preservation of fruit and vegetables, slaughters, food warehouses, shops (delicatessen, fish shops, ice cream parlour…), plant for the fish transformation, ice cream industry.

STANDARD
STAINLESS STEEL

STANDARD

Blade

Blade edge in anodized aluminium (thikness 92 mm);
Blade covered with plastic-coated metal sheet for food application colour RAL 9010, thickness 5/10;
CSI or Equa handle certified EN179:2008, without key;
EPDM double density gasket on 3 sides;
PVC lower gasket;
Heating cable ~30W/m powered at 220V and put inside the gasket on the blade.

Frame system

Frame and side-frame "L" 110/60 in PVC colour RAL 9010; the frame is thermo-welded (45°) up to a thickness equal to 160 mm, beyond such thickness it’s assembled (90°) with joints;
Counter-frame in PVC, colour RAL 9010, thermo-welded (45°);
Threshold S/2 with the frame (2 jambs + 1 transom) partially put (60 mm) into the floor. At the bottom of the frame it’s fixed an “L” beam made of iron which is recessed into the floor. Only the upper part will result visible at the end of the work.

STAINLESS STEEL

Blade

Blade edge in stainless steel 304 thickness 15/10 (total thickness 92mm, included the bearing in PVC of the gasket ) folded and welded;
Blade coated with stainless steel 304 sheet thickness 6/10;
CSI or Equa handle certified EN179:2008, without key;
EPDM double density gasket on 3 sides;
PVC lower gasket;
Heating cable ~30W/m powered at 220V and put inside the gasket on the blade.

Frame system

Frame in PVC , coated with stainless steel 304 sheet thickness 6/10;
Side-frame in PVC , coated with stainless steel 304 sheet thickness 6/10;
Counter-frame in stainless steel 304 sheet thickness 15/10, folded and welded.
Threshold S/2 with the frame (2 jambs + 1 transom) partially put (60 mm) into the floor. At the bottom of the frame it’s fixed an “L” beam made of iron which is recessed into the floor. Only the upper part will result visible at the end of the work.

Blade/frame system

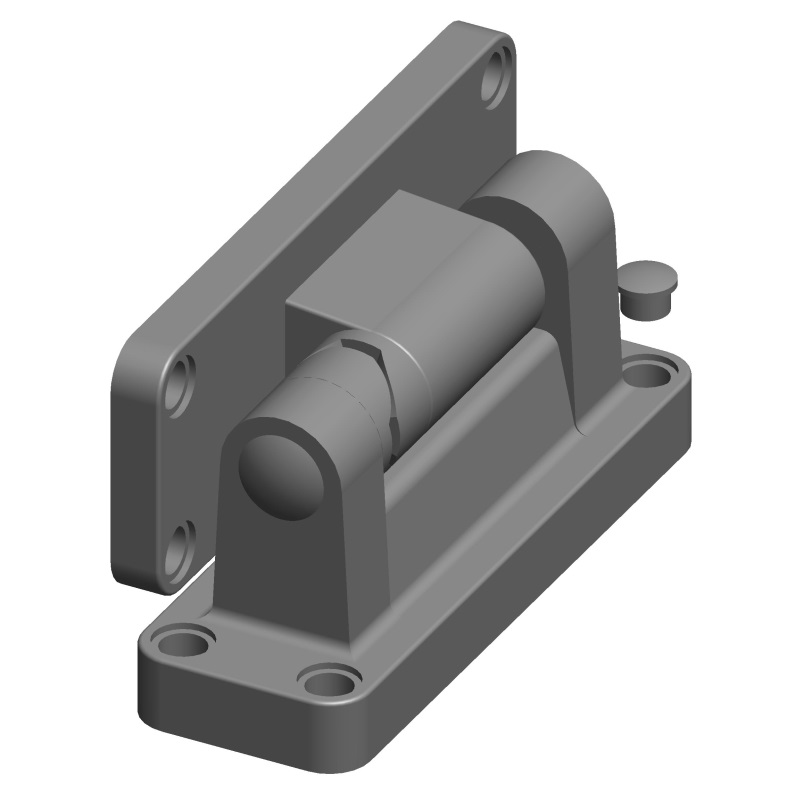

MTH hinges not adjustable
