PRODUCT DESCRIPTION
Hinged door suitable cold rooms having negative temperatures up to -40°C , with CSI or Equa handle certified EN179:2008 handle and heating cable into the frame.
- For negative temperatures up to -40°C
- Blade thickness 121 mm
- Polyurethane density 40 Kg/m³
- Available in one blade or two blades versions
APPLICATIONS
Suitable for cold rooms used for the preservation of foods at a temperature from –30° and up to –40°C.
STANDARD
Blade
- Blade edge in anodized aluminium (thikness 121 mm) with PVC profile for second gasket;
- Blade covered with plastic-coated metal sheet for food application colour RAL 9010, thickness 5/10;
- CSI or Equa handle certified EN179:2008, without key;
- N. 2 Double density EPDM gasket on 3 sides;
- PVC lower gasket;
- Heating cable ~30W/m powered at 220V and put inside the gasket on the blade.
Frame system
- Frame and side-frame "L" 110/60 in PVC colour RAL 9010; the frame is thermo-welded (45°) up to a thickness equal to 160 mm, beyond such thickness it’s assembled (90°) with joints;
- Counter-frame in PVC, colour RAL 9010, thermo-welded (45°);
- Threshold S/4, the frame (2 jambs + 1 transom) it’s partially put (80 mm) into the floor. At the bottom of the frame are fixed a tubular made of iron (60 x 60 mm) and another one made of stainless steel (60 x 20 mm), which are recessed into the floor. Only the upper part will result visible at the end of the work. Inside the stainless steel tubular there is the heating cable;
- Heating cable ~30W/m powered at 220V and put inside the frame.
Blade/frame system
MTH hinges not adjustable
Standard dimensions for one blade version
- Up to 1200x2500mm: blade having just the CSI or Equa handle;
- From 1200x2500mm up to 1500x2500mm: blade having CSI or Equa handle + closing latch (additional closing system with spring).
Standard dimensions for two blades version
- Up to 3000x2500mm;
- It’s made of a mobile part (the right one, if not otherwise specified) and a semi-fixed blade (with 2 internal hatches, 1 upon and 1 below) that can have a total width double compared to the one blade version.
- The two blades can have different widths, even if generally the fixed one is requested more narrow.
OPTIONS
Metal sheets colors and stainless steel versions
(the colors are only representative)
Blade protection
The protection can be mounted inside, outside or on both sides
Available materials:
- Stainless steel
- Aluminum
- Corrugated aluminum (riveted to the surface)
- White polyethylene (riveted to the surface)
Handle
Hinges

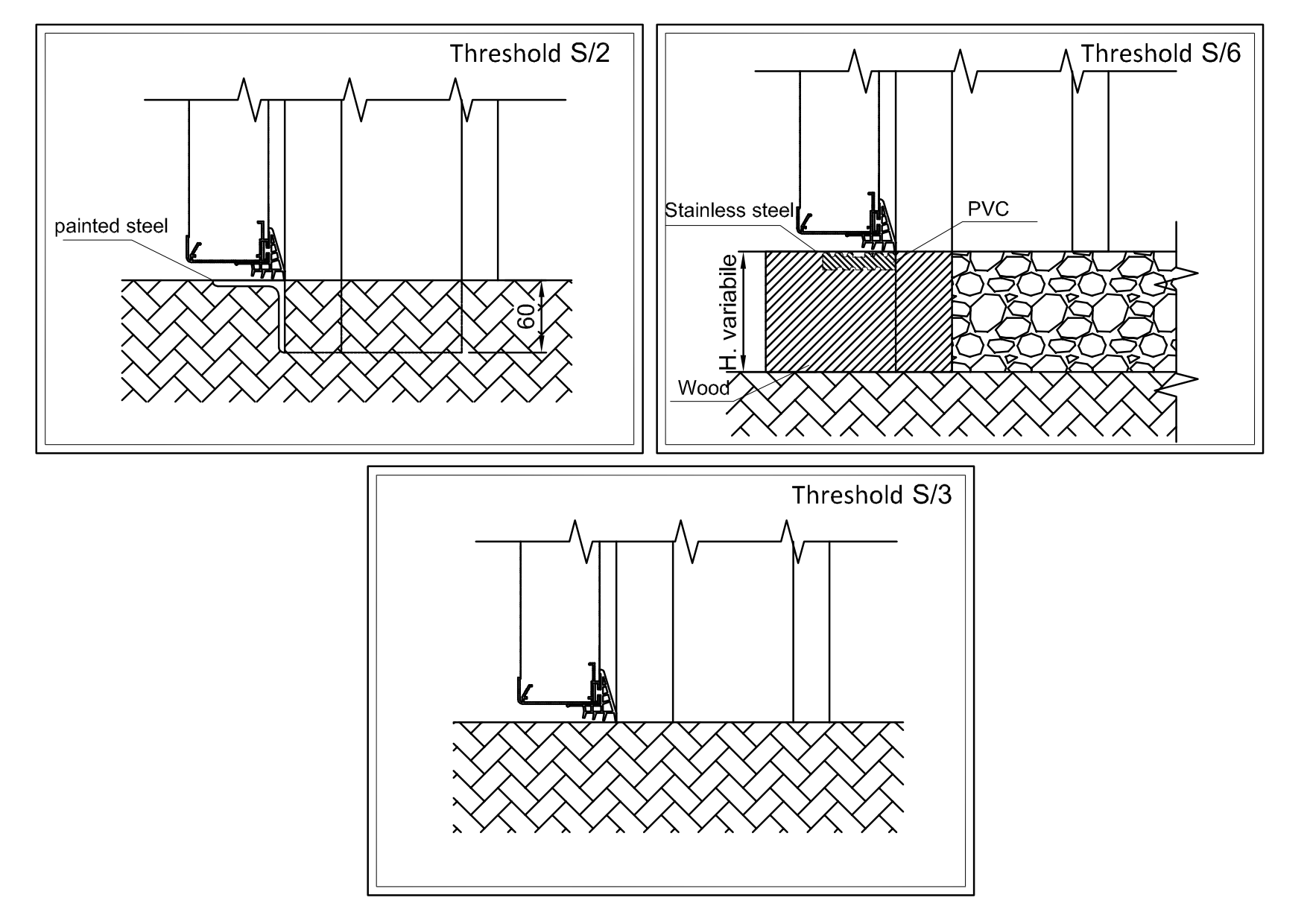

Threshold
